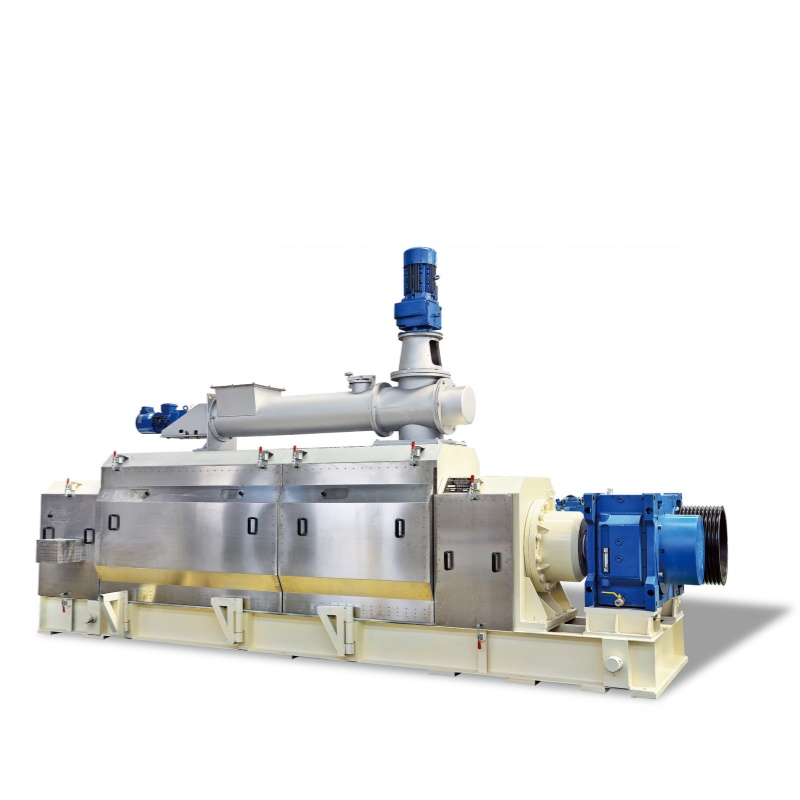

DZX319 screw oil press is a large low-temperature oil press independently developed by our company for the press process, which is suitable for the press of peanut kernel, sunflower seed, rapeseed, cottonseed, soybean and other plant oils. The gearbox is a standardized reducer, the user can specify domestic and foreign reducer brand products, design an independent thrust bearing room, so that the reducer is not subject to axial force, smooth operation, low maintenance rate. The cooling device of the main shaft is designed to reduce the surface temperature of the press shaft, reduce the temperature of the cake, and reduce the loss of protein in the cake. The machine is made of high quality materials and modular processing technology, the fuselage is solid, the structure is reasonable, the appearance is beautiful, the operation is convenient, the operation is stable, and the technical indicators are superior.

Power: 110KW

Overall dimensions (L × W × H):4500 x2000 x 3600mm

                   Net weight :13500KG

Main technical parameters

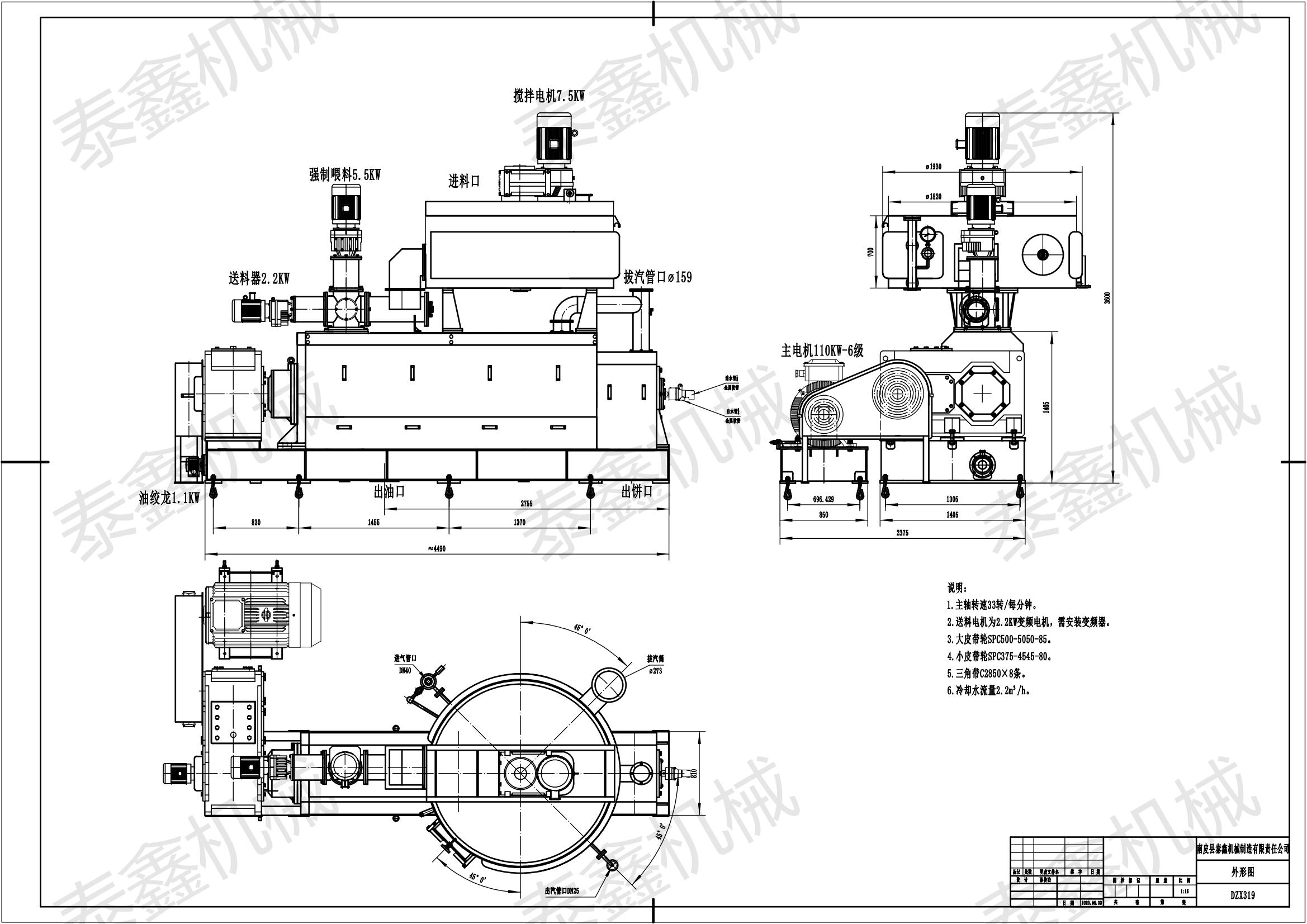

       Outline foundation plan
